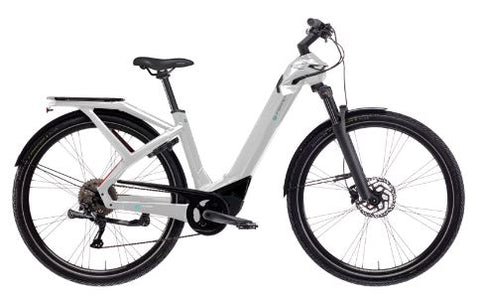

BIANCHI E-OMNIA C TYPE E-BIKE
Description:
All Bianchi Bikes must be Picked up at our Physical Store Location. We do not ship E-Bikes.
4665 Golden Foothill Parkway Suite 101 El Dorado Hills, CA 95762
E-OMNIA C TYPE
FRAME SIZE: MEDIUM
TECH SPECS
-
MOTOR UNIT
-
MOTOR
BOSCH PERFORMANCE LINE CX 250W 85NM -
BATTERY
BOSCH POWERTUBE 625WH
-
-
FRAMESET
-
FRAME
e-Omnia C Type Step Thru chain drive ALU, 2 size: SM, MD, LG (45-50-55), Ready to fix the chainguard, Post mount 180mm disc brake type, Ready to fix rear kyckstand, custom rearcarrier integrated in the frame, Set dropout (sx+dx) QR 135mm external deraille -
FORK
SR SUNTOUR XCM34 BOOST LOR DS 29" TRAVEL 100MM -
HEADSET
Fsa NO.55R/558 1.5"
-
-
DRIVETRAIN
-
SHIFTERS
Shimano Deore SL-M4100-R, 10sp -
REAR DERAILLEUR
Shimano RD-M5120, DEORE, SGS 10sp, SHADOW DESIGN -
CRANKSET
FSA METROPOLIS ALLOY E-BIKE SPECIFIC, CRANK LENGTH 170MM, ISIS BB AXLE, W/FSA 38T STEEL MEGATOOTH CHAINRING -
BB
Included w/motor unit -
CHAIN
Kmc e10S NPBK Anti-Rust 1/2" x 11/128" EPT -
CASSETTE
Shimano DEORE CS-M4100-10, 11-42T
-
-
BRAKES
-
BRAKES
SHIMANO BR-MT200, W/180MM FRONT & REAR ADAPTERS, RESIN PAD -
ROTOR
Shimano SM-RT10, diam. 180mm
-
-
WHEELS
-
RIMS
VELOMANN EBIKE MAXX 29" - 622X25C -
REARHUB
FORMULA CL-1422 CENTER LOCK -
TIRE
SCHWALBE MARATHON E-PLUS 55-622 28X2.15
-
-
COCKPIT
-
STEM
Velomann 35/31.8mm, lenght: 95mm for Kiox mount -
HANDLEBAR
Velomann AL6061, diam. 31.8mm, width 630mm, Rise 34mm, Backsweep 41° -
GRIPS
HERRMANS LUNA LOCK
-
-
SADDLE
-
SEATPOST
Velomann, lenght 350mm-15/17'' and 400mm-19/21'', diam.31,6mm, 0mm seatback, AL2014 shaft -
SADDLE
Velomann A038UE0 Unisex, Rail Elastomer, black steel rail, 256x220
-
-
ACCESSORIES
-
MUDGUARDS
SKS PET MUDGUARDS A65 R -
KICKSTAND
VELOMANN R78 KING EVO REAR MAX 35KG -
REARCARRIER
custom rear carrier integrated into the frame design -
FRONTLIGHT
INTEGRATED CUSTOM FRONT AND SIDE LIGHT MADE W/SPANNINGA -
REARLIGHT
Spanninga integrated rear lights
-
Based on component availability, Bianchi reserves the right to make changes on specifications without notice
FRAME CODE: WBK738439S
SERIAL NUMBER: 081797926
